Understanding the plate compactor and why vibration locks loose soil into a stable base

Why summer building leans on solid ground

Across the United States, the warm months are when paver patios go down, walkways take shape, and crews cut road base and footing trenches. Every one of those jobs rests on a quiet truth: the surface is only as good as the ground beneath.

Loose sand and gravel are full of trapped air. Let traffic or rain work through them, and those pockets collapse, the grains shift, and the finished surface sinks, cracks, or heaves.

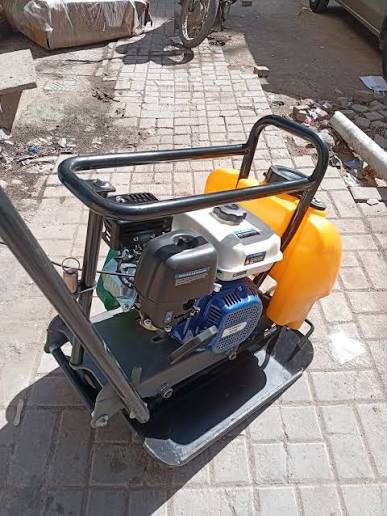

Closing those voids before construction begins is the job of a plate compactor, which turns spread fill into a dense, load-bearing foundation.

The physics of shaking grains into place

The intuition is the same as settling a jar of dry rice: tap it and the loose grains rattle, slide past one another, and drop into a tighter, firmer arrangement. A plate compactor does this with force and speed.

Inside the machine, an off-center weight spins fast, throwing rapid vertical impulses into a heavy steel base plate that hammers the ground hundreds of times a minute. Each impulse lifts the grains apart so they re-seat tighter.

The trapped air is driven out, friction between grains rises, and the layer becomes a solid mass.

Matching the action to the soil

Compaction is not one method but several, and the right choice depends on the ground. The useful way to classify the equipment is by the force it delivers:

•Vibrating plate: best for sand, gravel and crushed stone

•Impact rammer: deep blows for sticky clay and silt

•Roller: presses wide lifts over open ground

The split between vibration and impact follows the material. Granular grains respond to fast shaking because they only need to be jostled loose to find a tighter seat, which is exactly what a vibrating plate compactor provides.

Cohesive clay behaves differently. Its particles cling together, so vibration barely moves them; they need the deeper, pounding blow of a rammer. The wrong tool leaves weak ground behind.

What reversible means and why it helps

A simple plate compactor uses one eccentric weight and only travels forward, so the operator walks it down a strip and lifts it back to start again. A reversible model carries two eccentric weights whose timing can be shifted, so it can drive forward, hold in place, or back up. That control matters in a narrow trench with no room to turn around.

Two eccentrics also direct more energy straight down rather than dragging the machine along, reaching deeper into thicker lifts. A unit driven by a fourteen-horsepower engine carries enough mass to compact those layers in fewer passes.

Reading the job before the first pass

Good results depend on technique as much as the machine. Fill is best compacted in thin layers, a few inches at a time, because a single impulse can only reach so deep; piling it too high leaves a soft middle that will fail later. Lightly dampening the fill helps the grains slide into place.

Consider a Midwestern crew laying a paver patio in July. They spread the gravel base in two lifts, run the plate compactor over each in overlapping lanes, then compact the bedding sand the same way, leaving a base that will not settle.

Understood this way, a plate compactor is less a finishing tool than the foundation step itself, deciding whether a summer’s paving and base work stays flat and true.
